Description

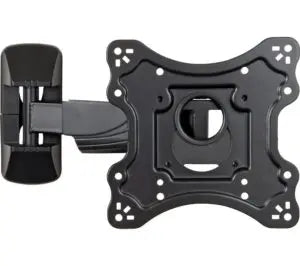

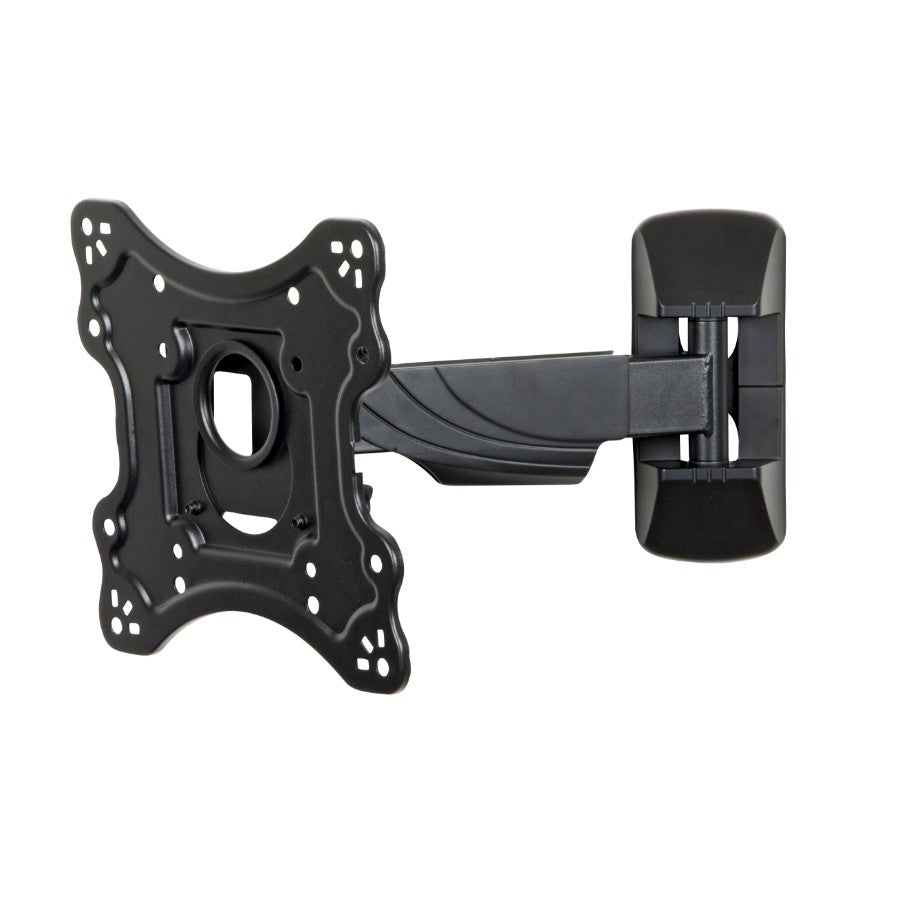

An ideal solution for most 24″-43″ flat panel TVs up to 35kgs. The simple construction allows for easy installation whilst the adjustable swivel arm and tilting VESA plate provide maximum viewing flexibility. It comes complete with cable tidy clips to help with cable routing and prevent unsightly cables hanging below your TV. The key hole VESA plate has been designed to allow TVs to be easily installed reducing the amount of heavy lifting required. Built-in level adjustable of +/-5° to ensure your TV is perfectly level. Maximum VESA 200×200.Thor Single Arm TV Bracket
Full motion, tilt and swivel.
Tilt from -8 to +5
Max. weight 35 kg
VESA sizes - 100 x 100, 100 x 150, 100 x 200, 200 x 200
Distance from Wall to TV: 52-276mm
24″-43″ LED, LCD Flat Panel TVs

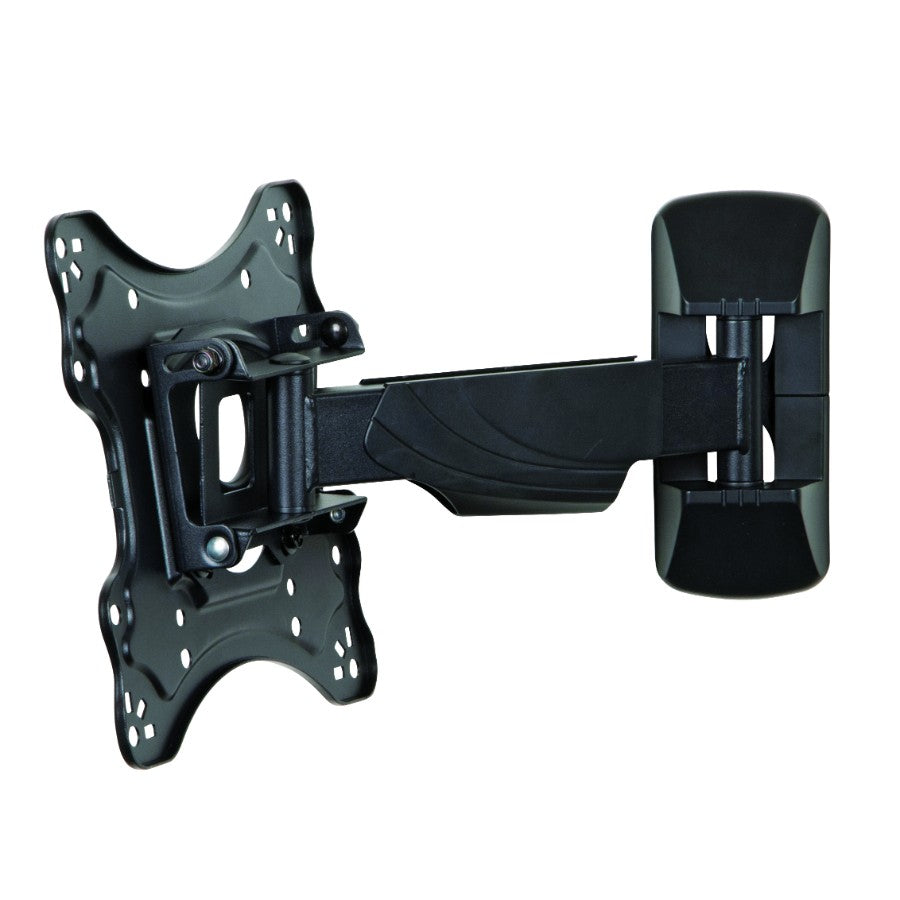

- Freely tilting allows easy TV angle adjustment
- Snap-in design makes installation much easier
- Swiveling arm offer maximum viewing flexibility
- Built-in level adjustment ensures perfect positioning
- Strength has been tested for a minimum of three times its stated load capacity
- Neat and tidy cable management keeps cables organized and clutter-free
Specifications
| Function: | Full motion |
| Mounting Pattern: | Standard VESA |
| Material: | Steel, Plastic |
| Thickness: | Wall panel 2.5mm,Panel 1.5mm,Pipe 1.2mm |
| Pipe Size: | 40x20x1.2mm |
| Surface Finish: | Powder coating |
| Available Color: | Black |
| Product Size: | 276x228x228mm |
| Suggested Screen Size: | 24″-40″ |
| Installation: | Solid wall, Single Stud |
| Rated Load: | 35kgs/77lbs |
| Strength tested: | 3 times approved |
| Max.Hole Pattern: | 200x200mm |
| VESA: | 100×100; 100×150; 200×100; 200×200 |
| Tilt: | ＋5°～-8° |
| Swivel: | +90°~-90° |
| Level Adjustment: | +5°~-5° |
| Profile: | 52-276mm |
