Description

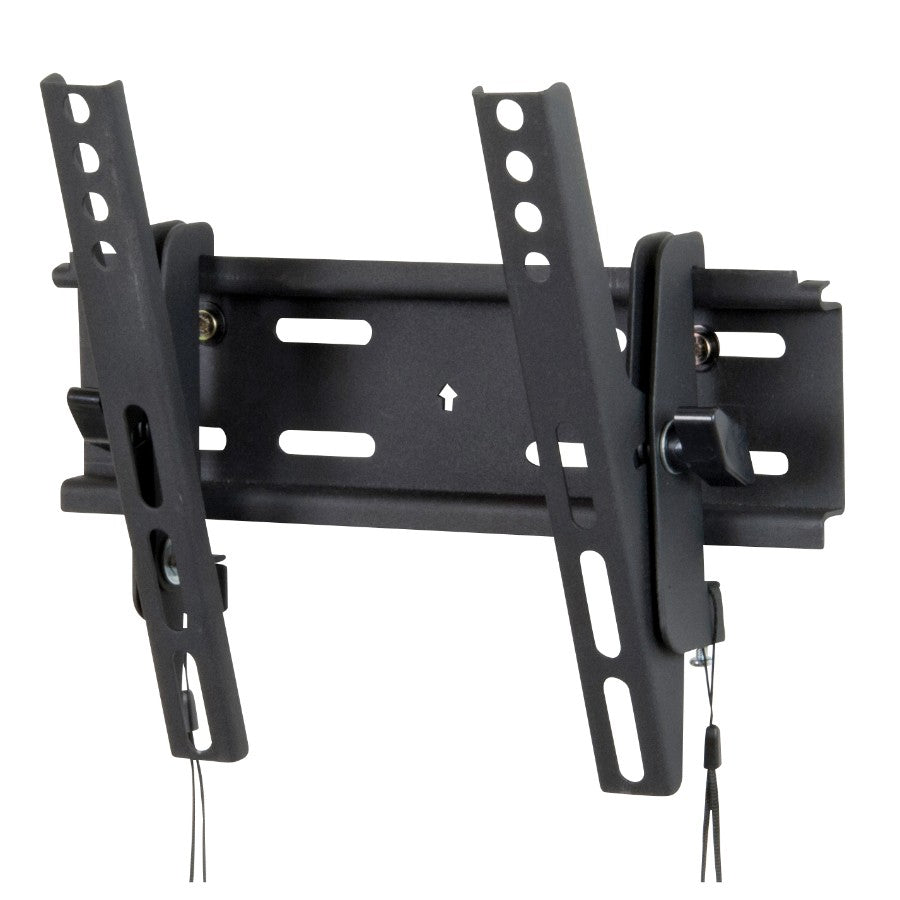

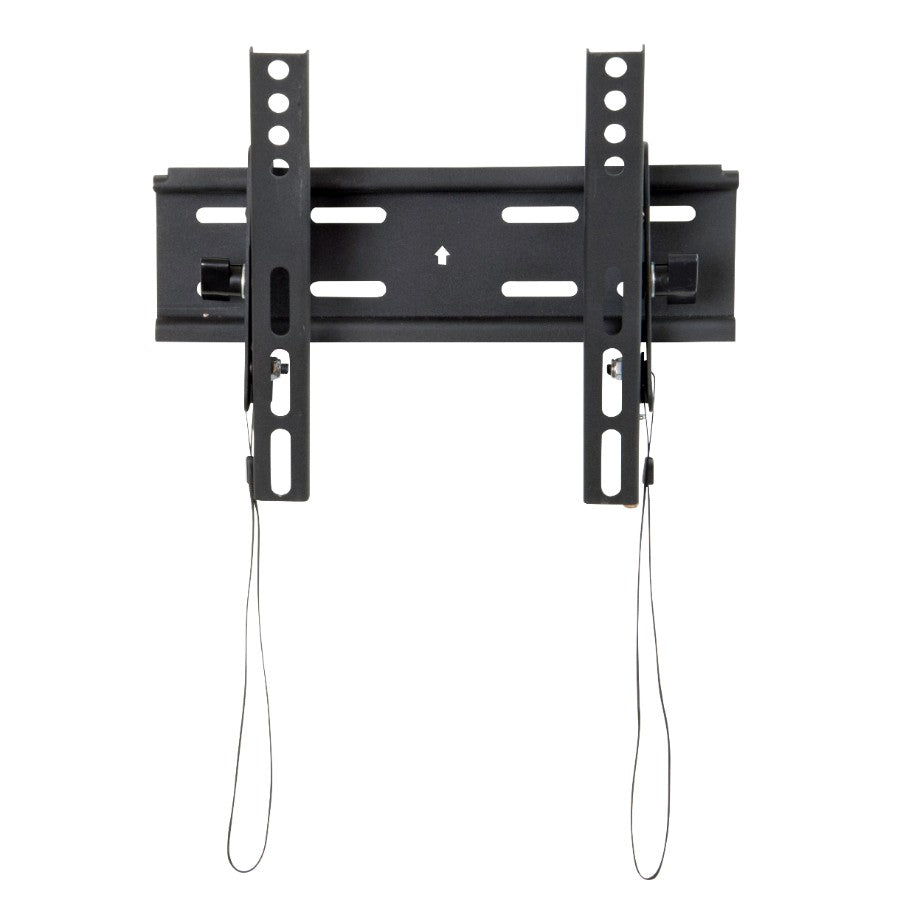

The 28083T ultra slim tilt TV wall mount is designed to fit any 24″-43″ Flat Panel TV up to 50kg. The Super Slim design sits just 40mm from wall to complement the sleek look of ultra-thin TVs. It tilts effortlessly and allows lateral shift adjustment meaning the TV can slide left or right on the wall plate so it is positioned exactly where you want it. It features an open design which maximizes airflow to equipment and p
24″-43″ LED, LCD Flat Panel TVs
- Freely tilting allows easy TV angle adjustment
- Super slim design sits just 45mm from wall to complement the sleek look of ultra-thin TVs
- Security screws hold TV securely in the wall plate
- Open architecture provides superior ventilation and easy access for wiring
- Lateral shift allows TV to slide left and right for perfect placement
- Simple construction ensures a quick and easy installation
- Automatically click-in spring lock with easily-release tab easily and securely attach your flat panels to wall
Specifications
| Function: | Tilting |
| Mounting Pattern: | Universal |
| Material: | Steel, Plastic |
| Surface Finish: | Powder coating |
| Available Color: | Black |
| Product Size: | 265X222X20.5mm |
| Suggested Screen Size: | 24″-40″ |
| Installation: | Solid wall |
| Rated Load: | 35kgs/77lbs |
| Strength tested: | 4 times approved |
| Max.Hole Pattern: | 202x238mm |
| VESA: | 50×50, 75×75, 100×100, 200×100, 200×200 |
| Tilt: | ＋0°～-8° |
| Profile: | 45mm |
rovides easy access to the back of components. Maximum VESA 200×200
